When security meets innovation, one name stands above the rest – Carbine. Discover the next generation of mortice locks with the Carbine Longreach 60mm standard backset latching mortice lock.
Engineered for effortless latching and dependable performance, this mortice lock is ideal for both commercial and residential environments. Its innovative design mitigates the risk of latch bolt jamming with the strike, ensuring smooth and reliable operation with every use.
*For fire rating details refer to www.carbine.com.au/fire-rated
Features:
- Selectable extended latch bolt projection.
– Latch bolt can be set at the standard length of 15mm.
– Latch bolt can be set at an extended length of 19.5mm.
– Deadlatching is operational at both standard and extended latch bolt positions. - Improved deadlatching mechanism allows deadlatching to be operational with door gaps up to 9.5mm.
- New 2-in-1 Carbine XZ cam (CSM72-CAMXZ) can lock and unlock the handle/s and also retract the latch bolt.
- Fire rated for 4 hours as a primary lock.
- Improved latching mechanism to prevent door jamming on closing.
- Hardened steel lock bar protection cover to prevent manipulation.
- Configurable locking of either or both handles with an existing X cam.
- 45 degree lever operation of unlatching latch bolt from striker plate.
- Through fixing for upper furniture
and oval cylinder escutcheon with Carbine Crisi range. - Selectable anti-lockout mode.
- The lock is functional with oval cylinders fitted with the standard W, X and Z cams.
- Retrofittable into doors fitted with existing equivalent latching mortice locks.
- Supplied striker plate required with extended latch bolt for proper latching and fire rating compliance.
- 60mm backset.
- Hold back mode can be configured with our Carbine hold back cam (handed) fitted on oval cylinder.
- Latch bolt and deadlatching snib handing for Installation on left and right-hand opening doors.
- Compatible with most electric strikes.
- Rebate kit available (CSM72-P-RK-SS).
- Extended timber faceplate available (sold separately).
- Installation suitable for door thickness from 32mm to 50mm.
Extended length hardware available separately for 50-100mm thick doors. - Optimal clearance between the lock face and the strike face after installation is 3mm, with an allowable range of 3mm to 5mm.
- Installation on inward and outward opening doors.
- Stainless steel casing, face plate, latch bolt and deadlatching snib.
- Cycle tested to 1,000,000 cycles, far exceeding the highest level of D8 of Australian Standard AS4145:2008*.
- Corrosion tested to 240 hours (equivalent to level C7 of Australian Standard AS4145:2008)*.
- Strength and security tested to the equivalent of S8 of Australian Standard AS4145:2008*.
- Box includes standard spindles to suit other manufacturers’ handles.
*Tested with Carbine Crisi furniture.

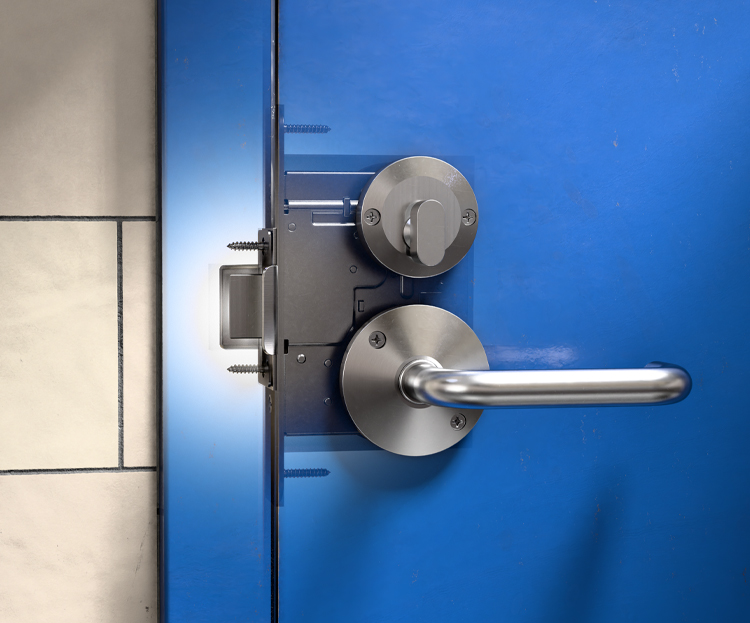

Innovative latchbolt projection mechanism
Featuring an innovative latch bolt projection mechanism, where you can select between the standard 15mm latch bolt extension or an extended 19.5mm, which fires further into the strike than your typical mortice lock design. This boosts security and resistance to jemmying attacks while offering the flexibility to tailor the lock to your specific needs. If there is insufficient space in the frame to accommodate the extra latch throw, the feature can be deactivated on installation.
Even when the extended throw is activated, the innovative design reduces the risk of latch bolt jamming and ensures enhanced security with every use. Additionally, the mortice lock’s improved deadlatch design activates with a gap of up to 9.5mm between the strike face and the lock mounting face plate. However, at installation, the gap between the strike face and the lock mounting face plate must be between 3mm and 5mm to ensure proper functionality and security.
The lock is suitable for doors ranging from 32mm to 50mm in thickness, but can accommodate doors up to 100mm thick with additional accessories.
Engineered for effortless latching and unmatched reliability.
Designed for lasting durability, safety, and unparalleled security
Cycle Test
Corrosion Test
Australian Standard
Fire Rated
www.carbine.com.au/fire-rated
Engineered for easy installation, it is designed to retrofit equivalent 60mm backset mortice locks in Australia.
Fire-rated and rigorously tested, Carbine’s Longreach mortice lock is designed for lasting durability, safety, and unparalleled security. It has been tested to the equivalent of S8 under Australian Mechanical Lock Standards, assessing the lock’s resistance of bolt to end pressure, hub to torque, bolt to horizontal impact and latch bolt to static force.
It has also been tested to the equivalent of D8 under Australian Mechanical Lock Standards, including tests on latching cycles, deadlocking cycles, key operation cycles, door furniture cycles and more. Notably, its latching cycle exceeds D8 standards, having been tested for over 1 million cycles.
In addition to the mortice lock’s strength and durability, it is crafted with a careful selection of materials, ensuring a stylish design, high corrosion resistance, and enhanced functionality.
For added versatility, the mortice lock’s functionality can be further customised by pairing it with Carbine’s unique XZ cam, which locks and unlocks the locking bar and retracts the latch bolt.
Various security needs with flexible options.
The mortice lock offers a swift and smooth 45-degree lever operation, creating a more responsive unlocking experience. It adapts to various security needs with flexible options, including an outside lever locking feature, anti-lockout mode, and, when combined with Carbine’s hold-back cams, the ability to enable hold back
functionality.
Spare Parts

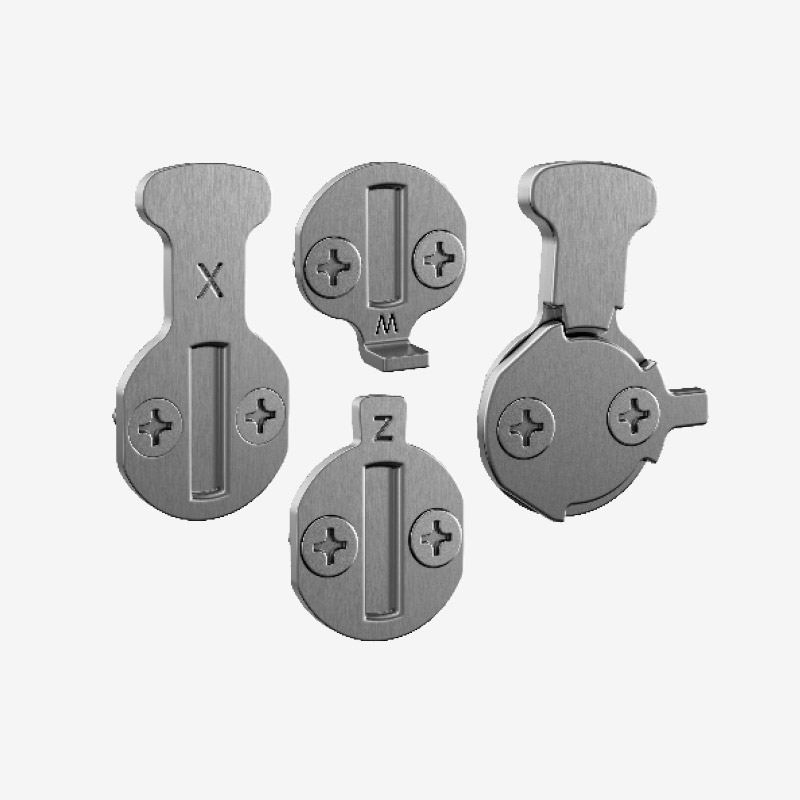

Cams

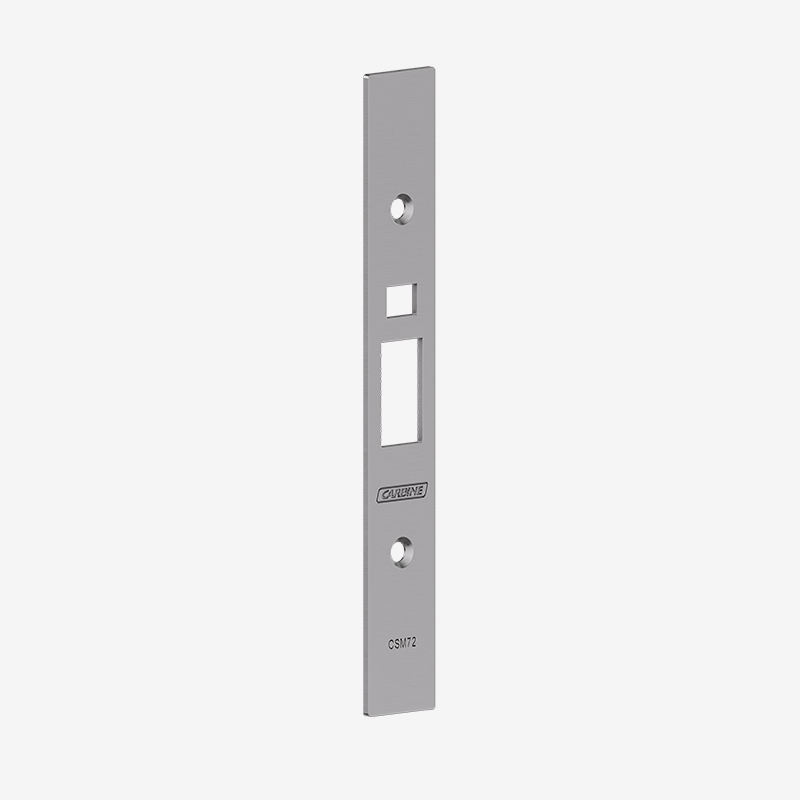

Face Plates

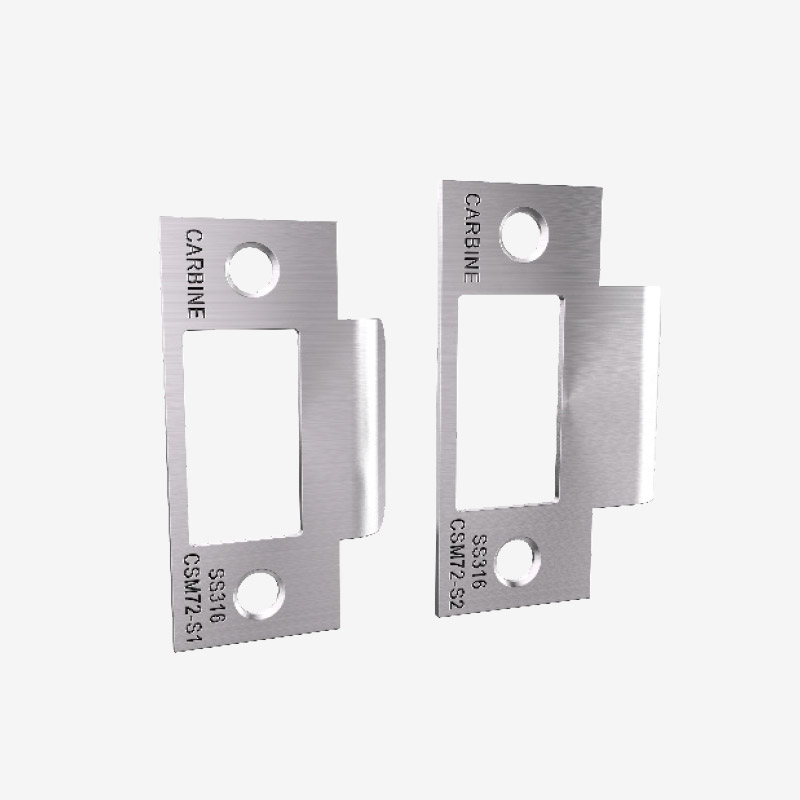

Strike Plates

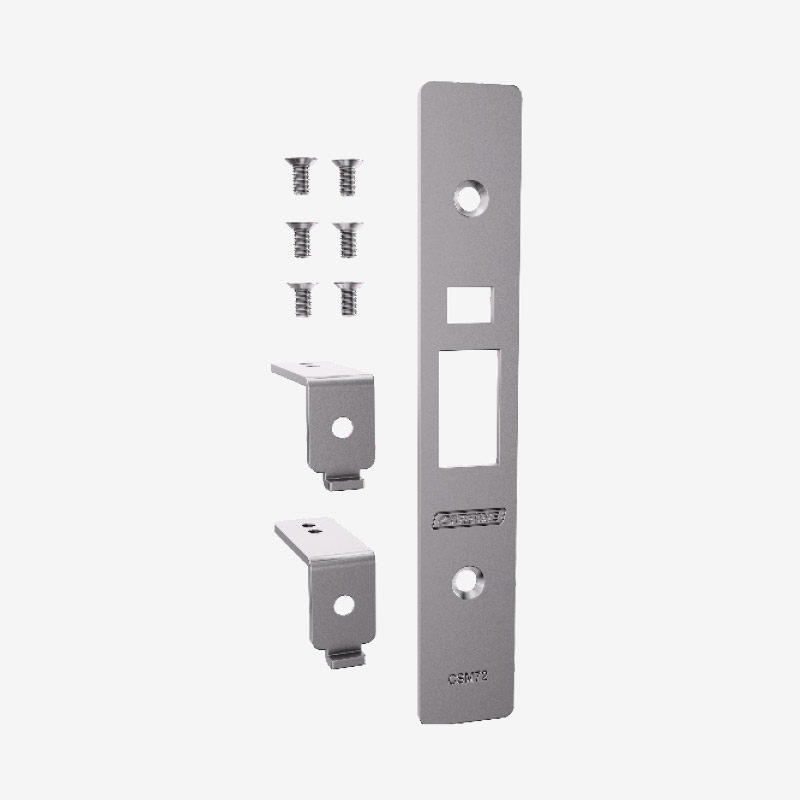

Retrofit Kits

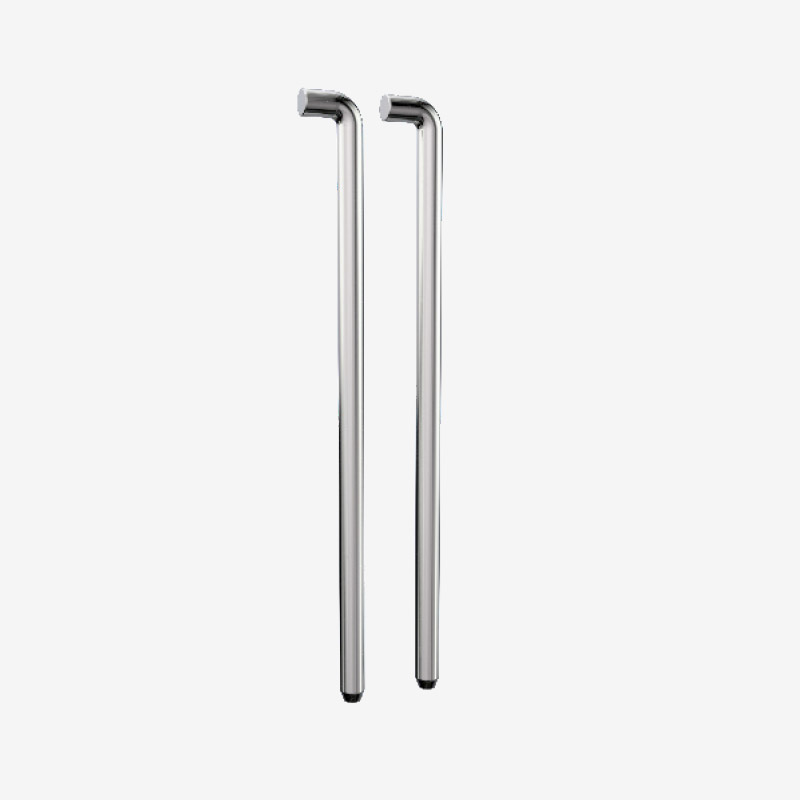

Cylinder Retainers
Rebate Kit

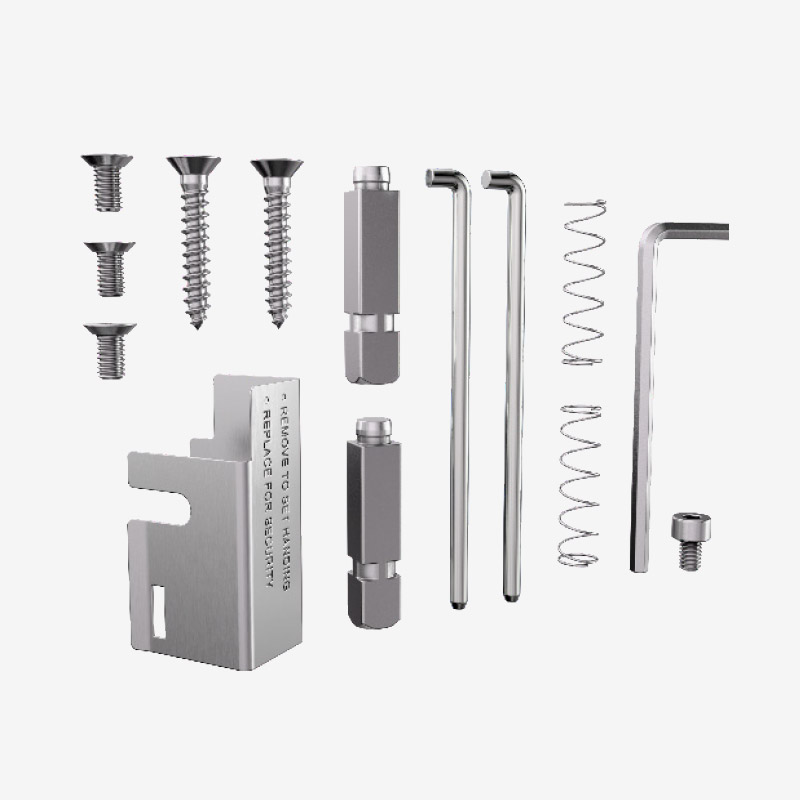

Mortice Lock Parts Packs

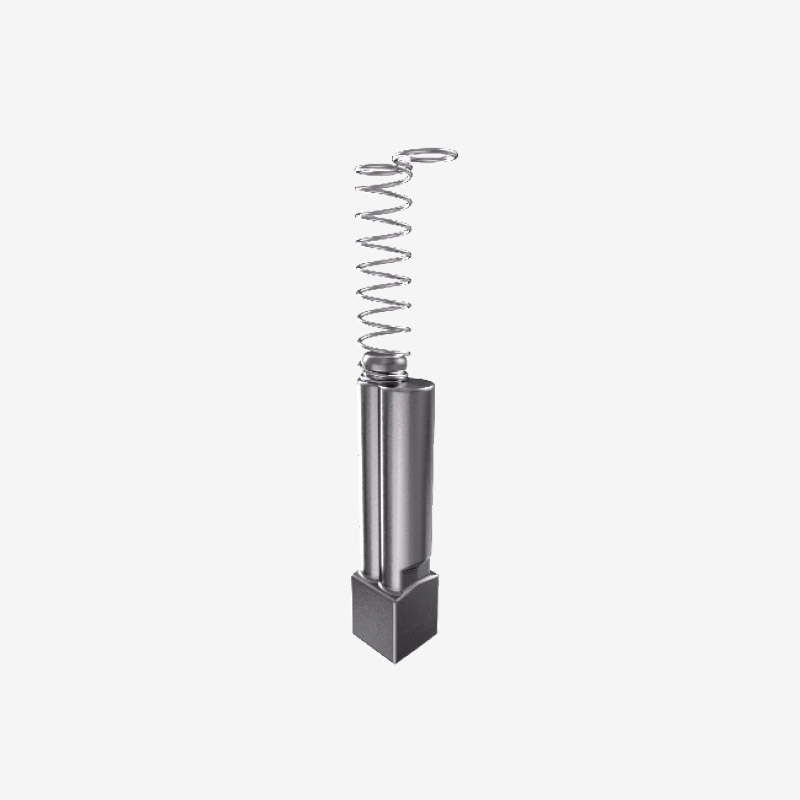

Furniture Spindles - Standard and Extended

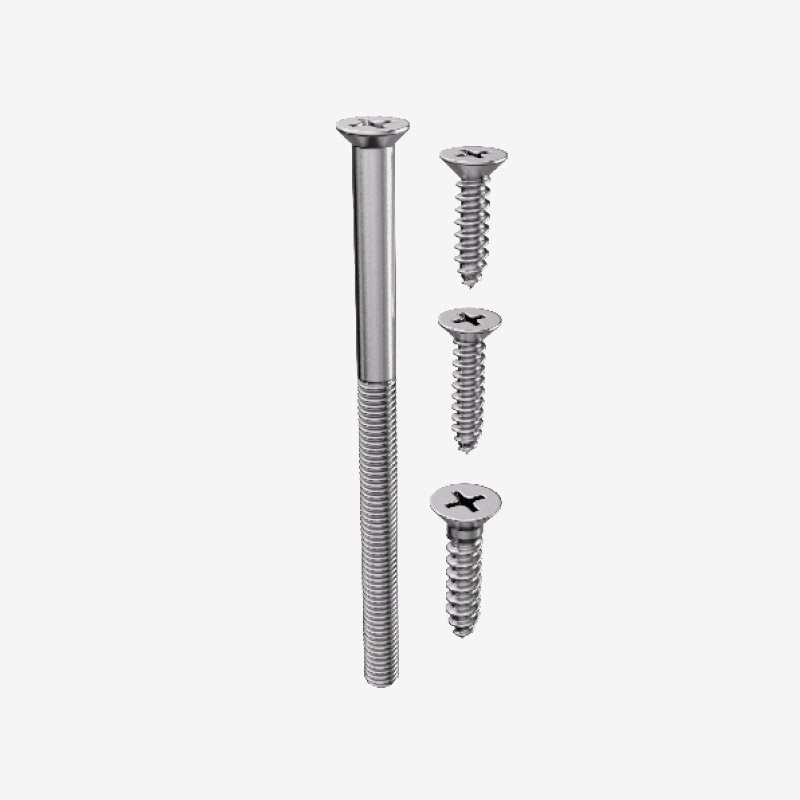

Furniture Screws - Standard and Extended
Innovation in lock design
All Carbine locks are developed in collaboration with some of Australia’s most talented and visionary locksmiths. It’s your guarantee of superior quality, versatility and ease-of-installation.
