The Carbine Crisi Round Rose Furniture pairs perfectly with the Longreach 60mm backset mortice lock with its solid 316 stainless steel rose, lever, snibs and escutcheons.
*For fire rating details refer to www.carbine.com.au/fire-rated
To complement Carbine’s Longreach range, it can be paired with a selection of furniture and accessories to suit various applications.
To further secure and increase reliability, the mortice lock features additional upper furniture through fixing holes, allowing the upper furniture to fasten securely against the external oval escutcheon. These fixing holes work perfectly with the Carbine Crisi internal oval escutcheon and turn snib, as well as future Longreach-compatible furniture.

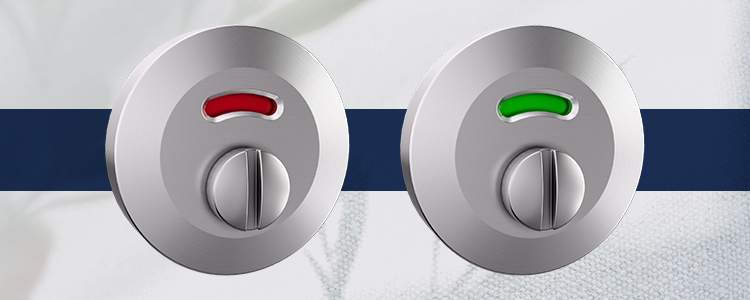

Crisi’s retained spindle and tail bar make for an easy installation. It’s also equipped with a reliable status indicator, which has long plagued existing models on the market.
Cycle Test
Corrosion Test
Australian Standard
Fire Rated
www.carbine.com.au/fire-rated
*Tested with Carbine Longreach 60mm Backset Mortice Lock
Various security needs with flexible options.
Vestibule
Outside handle locked/unlocked by inner turnsnib. Outside cylinder retracts latch. Inside handle always free.
Lock: CSM72-SS
Outside Cam:Â X
Inside Cam: –
Adaptor:Â CSM72-STA
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture:Â CRF136-EETF-SS
Upper Inner Furniture:Â CRF136-T-SS
CSM72-XT-RH-SS
CSM72-XT-RH-SS
CSM72-XT-LH-SS
CSM72-XT-LH-SS
Classroom
Outside handle locked/unlocked by outside cylinder. Inside handle always free.
Lock: CSM72-SS
Outside Cam:Â Z
Inside Cam: –
Adaptor:Â –
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture:Â CRF136-EETF-SS
Upper Inner Furniture: CRF136-PINT-SS
CSM72-Z-RH-SS
CSM72-Z-RH-SS
CSM72-Z-LH-SS
CSM72-Z-LH-SS
Emergency Classroom
Outside handle locked/unlocked by outside cylinder. Inside handle always free. XZ Cam allows latch to be retracted by outside cylinder if outside handle is damaged.
Lock: CSM72-SS
Outside Cam: XZ
Inside Cam: –
Adaptor:Â –
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture:Â CRF136-EETF-SS
Upper Inner Furniture: CRF136-PINT-SS
CSM72-EXZ-RH-SS
CSM72-EXZ-RH-SS
CSM72-EXZ-LH-SS
CSM72-EXZ-LH-SS
Entrance – Anti Lockout
Outside handle locked/unlocked by inner turnsnib or outer cylinder. Inside handle always free and kicks off locking when opened. Door latch depression when closing also kicks off locking to avoid lockout.
Lock: CSM72-SS
Outside Cam: W
Inside Cam: –
Adaptor: CSM72-STA
Anti Lockup:Â Y
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture:Â CRF136-EETF-SS
Upper Inner Furniture: CRF136-T-SS
CSM72-MTA-RH-SS
CSM72-MTA-RH-SS

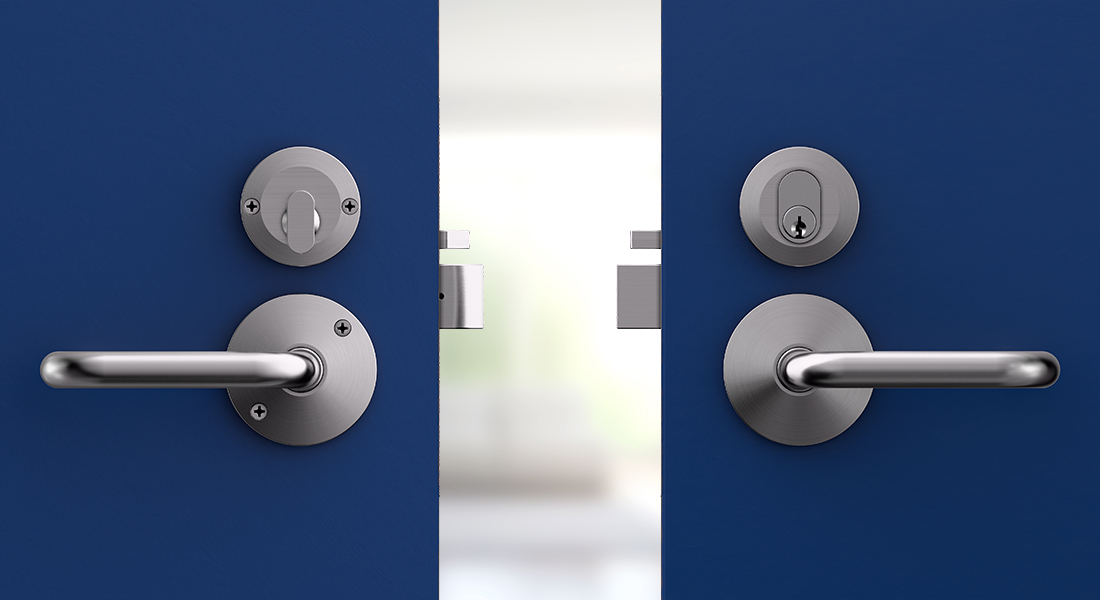

CSM72-MTA-LH-SS
CSM72-MTA-LH-SS
Entrance
Outside handle locked/unlocked by inner turnsnib or outer cylinder. Inside handle always free.
Lock: CSM72-SS
Outside Cam: W
Inside Cam: –
Adaptor: CSM72-STA
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture:Â CRF136-EETF-SS
Upper Inner Furniture: CRF136-T-SS
CSM72-MT-RH-SS
CSM72-MT-RH-SS
CSM72-MT-LH-SS
CSM72-MT-LH-SS
Double Cylinder
Outside handle locked/unlocked by inside cylinder. Outside cylinder retracts latch. Inside handle always free.
Lock: CSM72-SS
Outside Cam: X
Inside Cam: Z
Adaptor: –
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture:Â CRF136-EETF-SS
Upper Inner Furniture: CRF136-IETF-SS
CSM72-DXZ-RH-SS
CSM72-DXZ-RH-SS
CSM72-DXZ-LH-SS
CSM72-DXZ-LH-SS

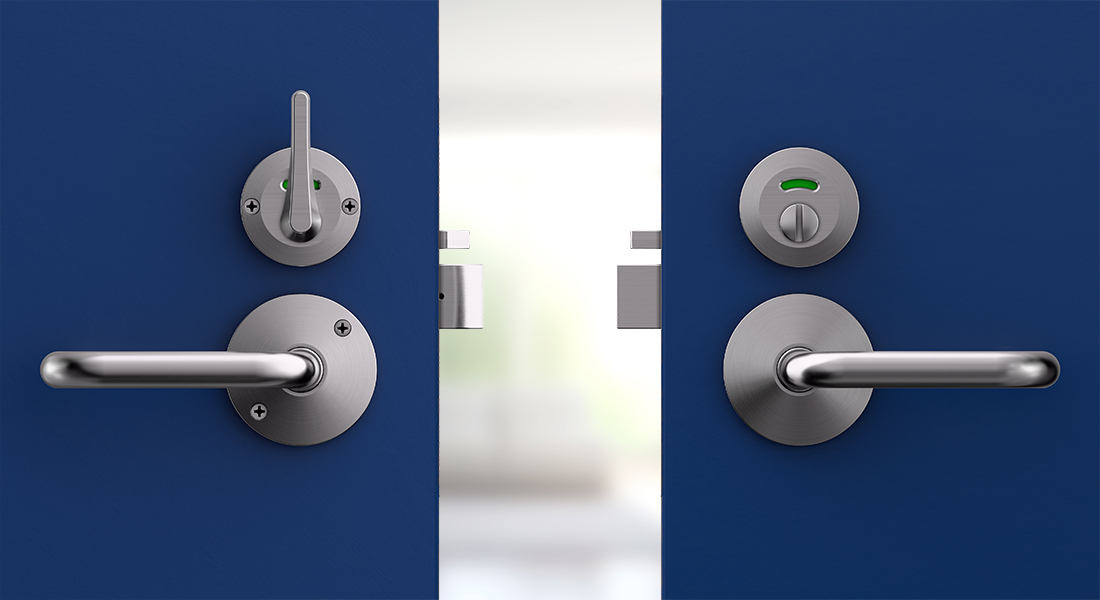

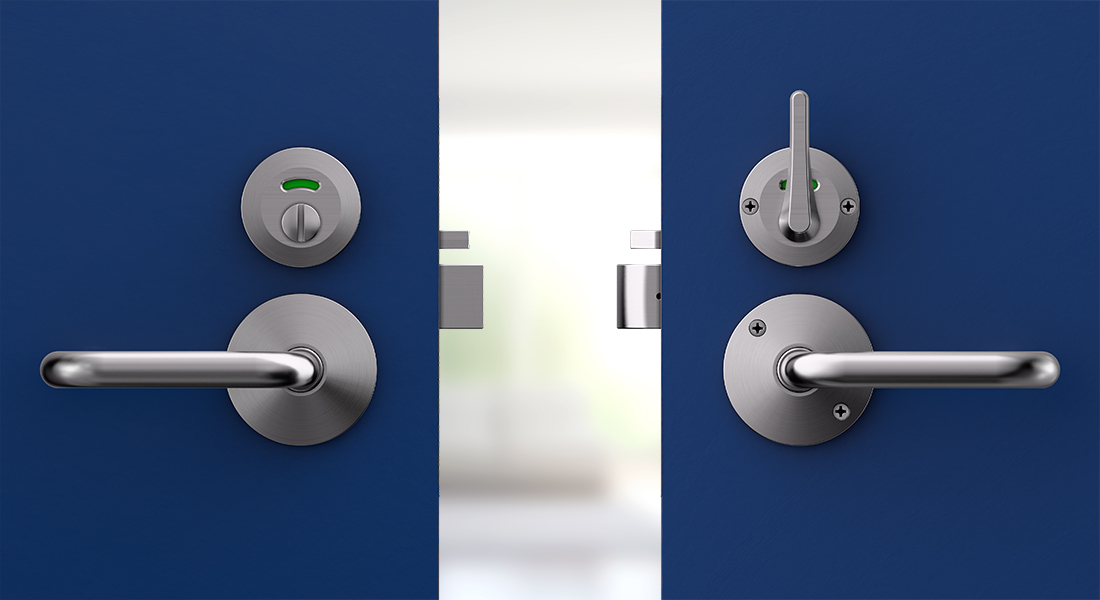

Privacy
Outside handle locked/unlocked by inner turnsnib or outer emergency turn in an emergency. Inside handle always free and kicks off locking when opened. Door latch depression when closing also kicks off locking to avoid lockout.
Lock: CSM72-SS
Outside Cam: W
Inside Cam: –
Adaptor: CSM72-STA
Anti Lockup:Â Y
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture: CRF136-EM-SS
Upper Inner Furniture: CRF136-DT-SS
CSM72-ET-RH-SS
CSM72-ET-RH-SS
CSM72-ET-LH-SS
CSM72-ET-LH-SS

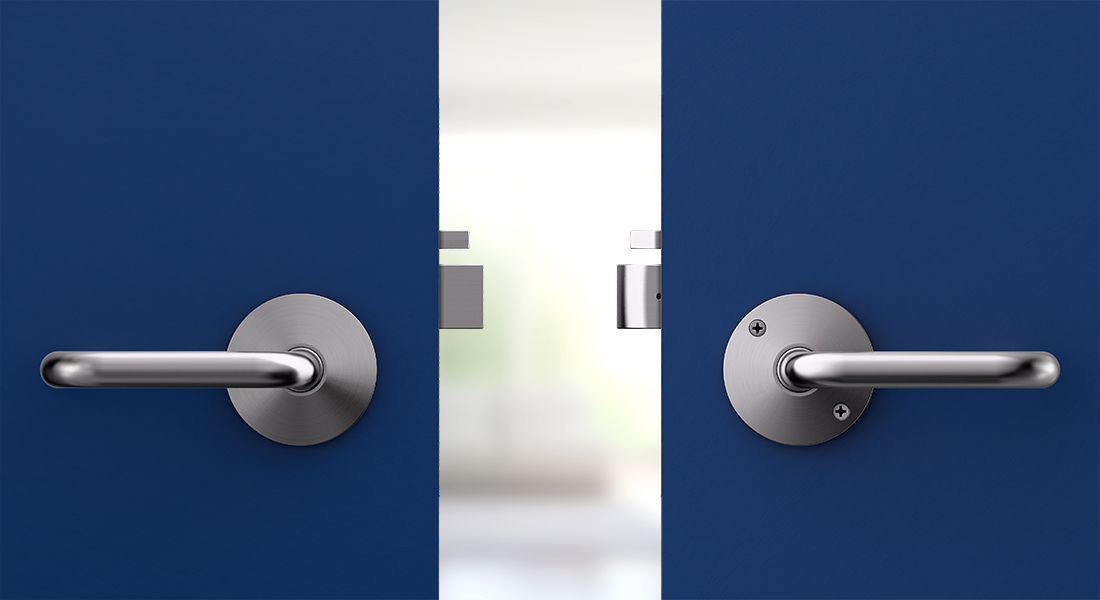

Passage
Passage set.
Lock: CSM72-SS
Outside Cam: –
Inside Cam: –
Adaptor: –
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture: –
Upper Inner Furniture: –
CSM72-PA-RH-SS
CSM72-PA-RH-SS
CSM72-PA-LH-SS
CSM72-PA-LH-SS
Storeroom
Outside handle always locked. Outside cylinder retracts latch. Inside handle always free.
Lock: CSM72-SS
Outside Cam: X
Inside Cam: –
Adaptor: –
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture: CRF136-EETF-SS
Upper Inner Furniture: CRF136-PINT-SS

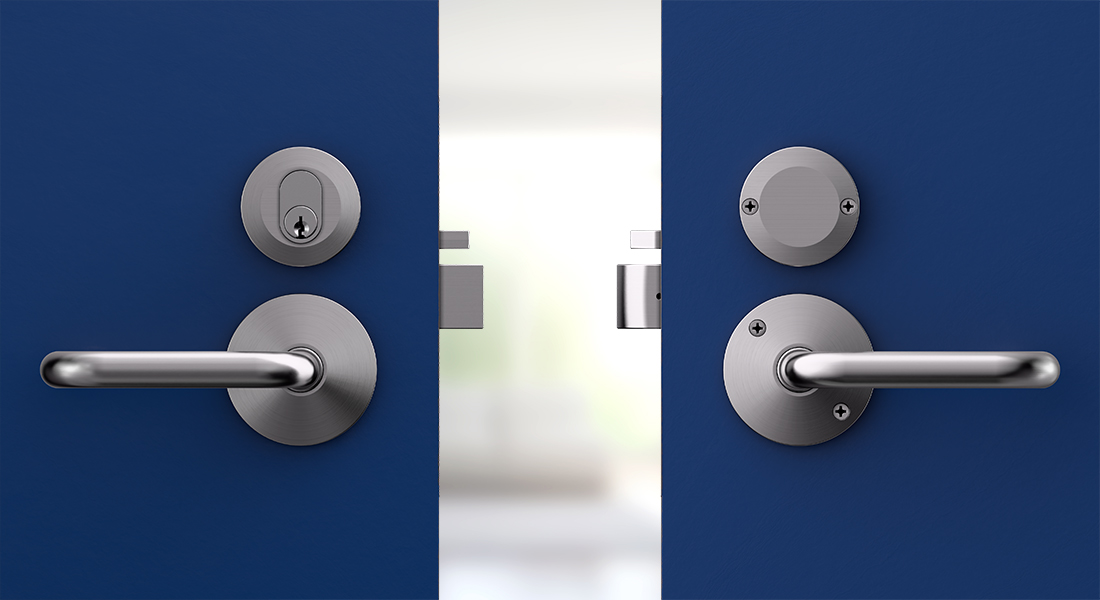

CSM72-X-RH-SS
CSM72-X-RH-SS
CSM72-X-LH-SS
CSM72-X-LH-SS
Holdback Storeroom
Outside handle always locked. Outside cylinder retracts latch and can remain in holdback. Inside handle always free.
Lock: CSM72-SS
Outside Cam: HB-RH | HB-LH
Inside Cam: –
Adaptor: –
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture: CRF136-EETF-SS
Upper Inner Furniture: CRF136-PINT-SS
CSM72-HB-RH-SS
CSM72-HB-RH-SS
CSM72-HB-LH-SS
CSM72-HB-LH-SS
Holdback Vestibule
Outside handle always locked. Outside cylinder retracts latch. Inside handle always free. Inside cylinder holds back latch.
Lock: CSM72-SS
Outside Cam: X
Inside Cam: HB-RH | HB-LH
Adaptor: –
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture: CRF136-EETF-SS
Upper Inner Furniture: CRF136-IETF-SS
CSM72-XHB-RH-SS
CSM72-XHB-RH-SS
CSM72-XHB-LH-SS
CSM72-XHB-LH-SS
Holdback Entrance
Outside handle locked/unlocked by outside cylinder. Inside handle always free. Inside cylinder holds back latch.
Lock: CSM72-SS
Outside Cam: Z
Inside Cam: HB-RH | HB-LH
Adaptor: –
Anti Lockup:Â –
Lever Furniture: CRF136-L7-SS
Upper Outer Furniture: CRF136-EETF-SS
Upper Inner Furniture: CRF136-IETF-SS
CSM72-ZHB-RH-SS
CSM72-ZHB-RH-SS
CSM72-ZHB-LH-SS
CSM72-ZHB-LH-SS
Exit Lock
Inside lever always free. No outside handle or cylinder.
Lock: CSM72-SS
Outside Cam: –
Inside Cam: –
Adaptor: –
Anti Lockup:Â –
Lever Furniture: CRF136-PEXT-L7-SS
Upper Outer Furniture: –
Upper Inner Furniture: –

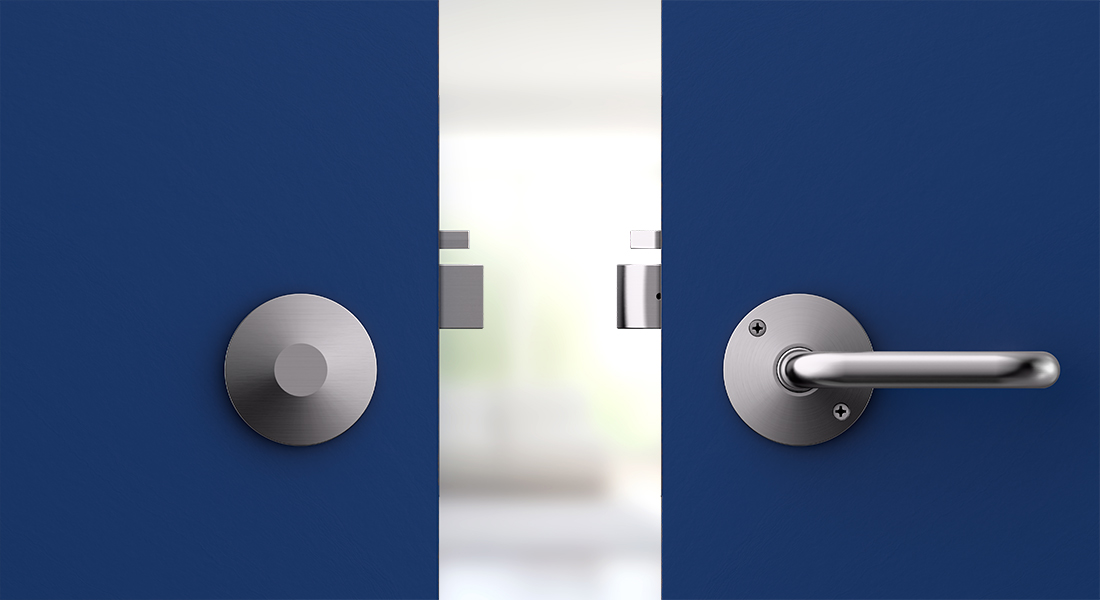

CSM72-PEXT-RH-SS
CSM72-PEXT-RH-SS

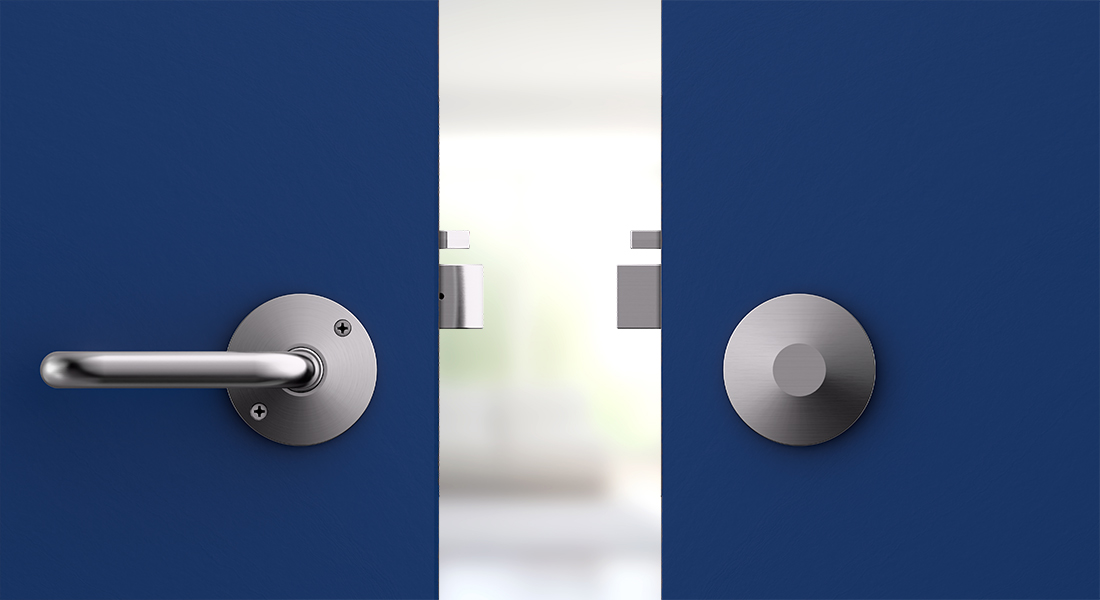

CSM72-PEXT-LH-SS
CSM72-PEXT-LH-SS
Innovation in lock design
All Carbine locks are developed in collaboration with some of Australia’s most talented and visionary locksmiths. It’s your guarantee of superior quality, versatility and ease-of-installation.
