OZI-3 LOCK COMBO SET
WITH ROLLER MORTICE LOCK
Designed for a seamless entry experience, the OZI-3 Lock Combo pairs a stainless steel pull handle set with the OZI-3 roller mortice lock, offering smooth door operation without compromising on security or style.
Ideal for hinged and pivot doors, the roller action allows effortless push/pull movement while maintaining reliable latching when the door is closed. This elegant system is perfect for front entries and architectural door designs that call for clean lines and minimal visual hardware.
OZI-3 LOCK COMBO SET

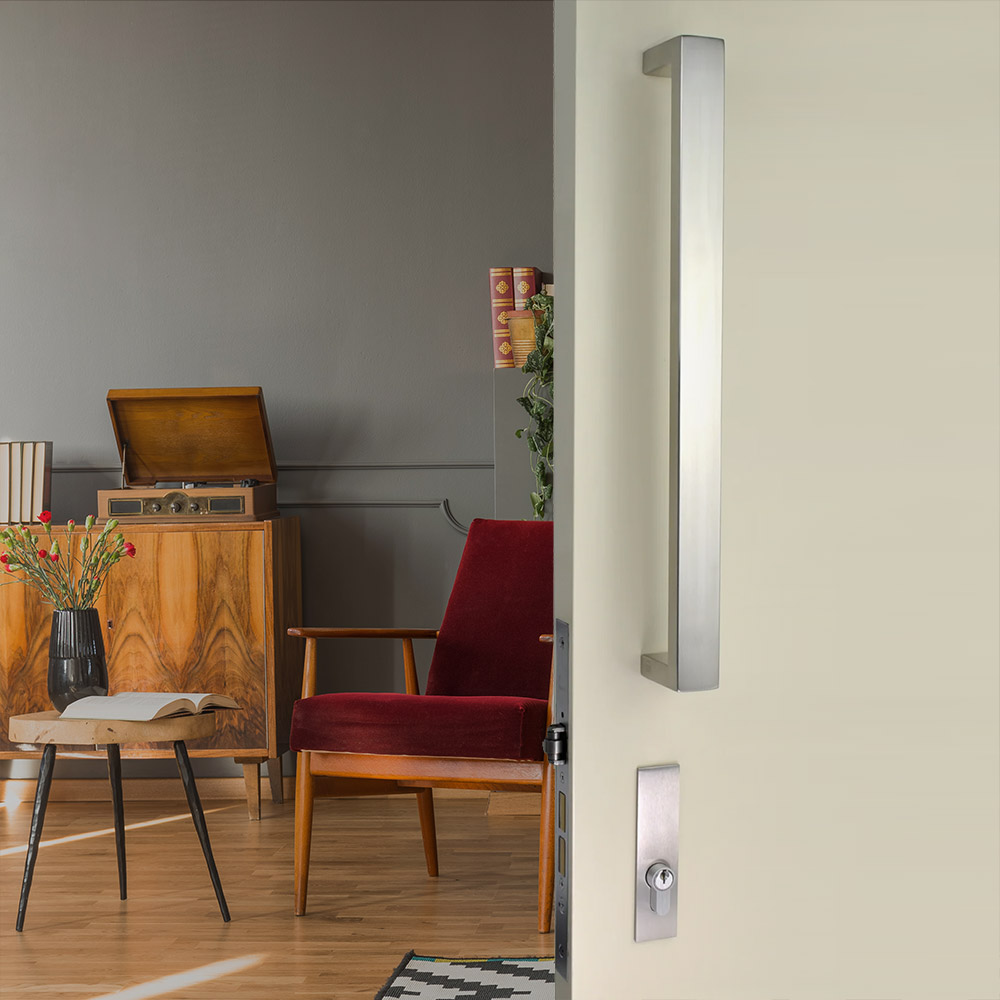

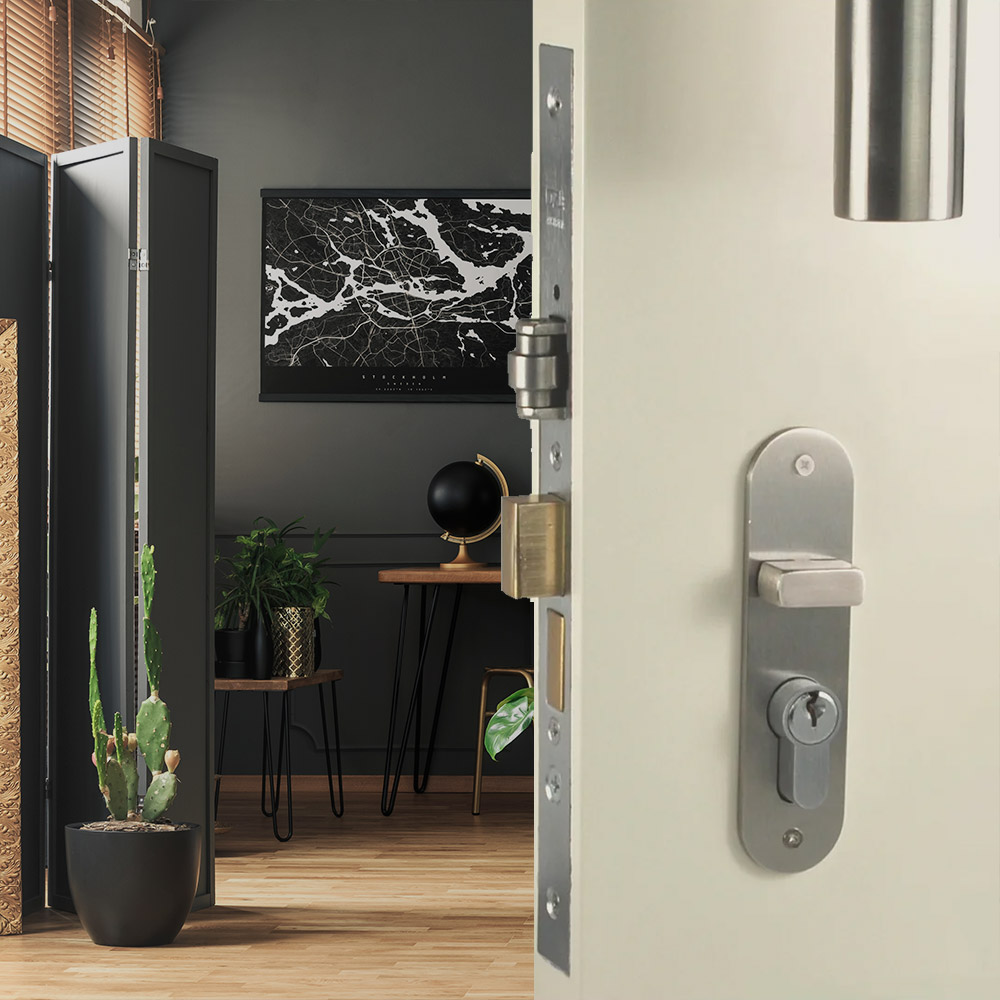

COMBO WITH PULL HANDLE
Rectangular Snib Set
+ Stainless Steel
+ Polished Stainless Steel
+ Matte Black
Radius Snib Set
+ Stainless Steel

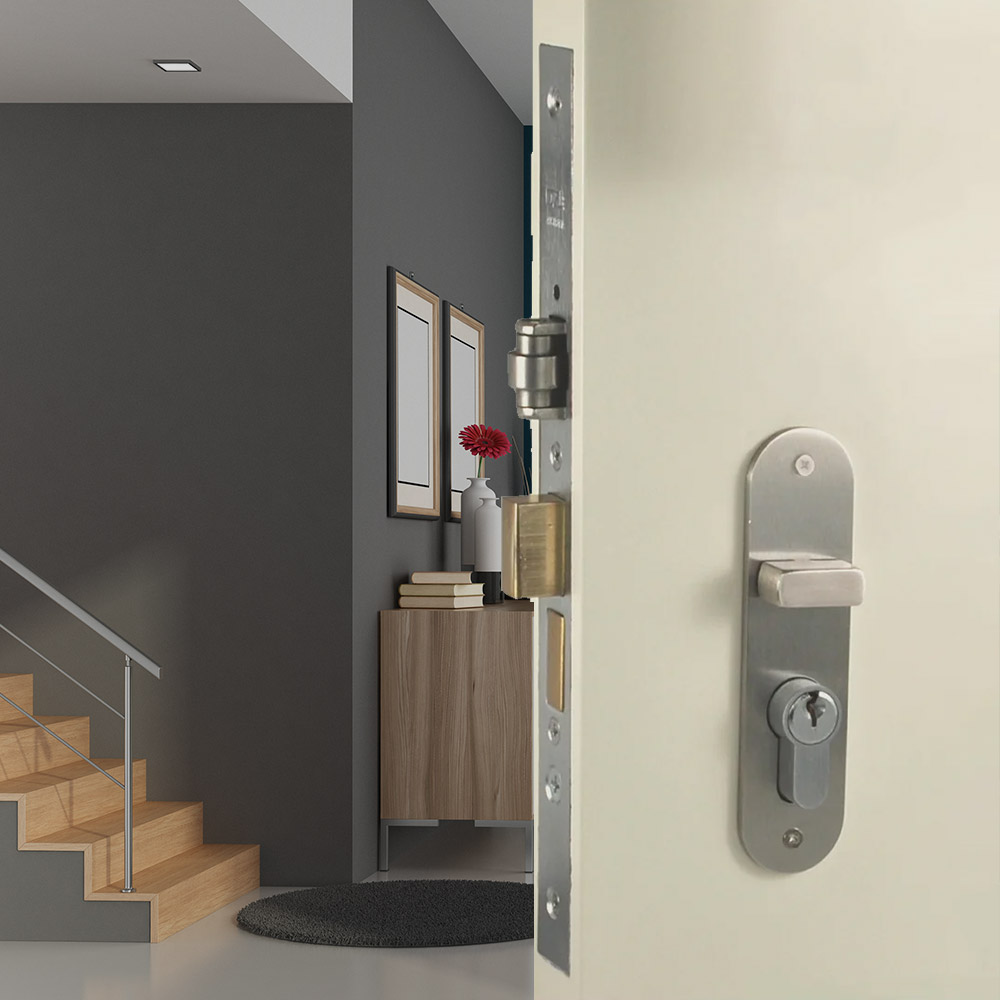

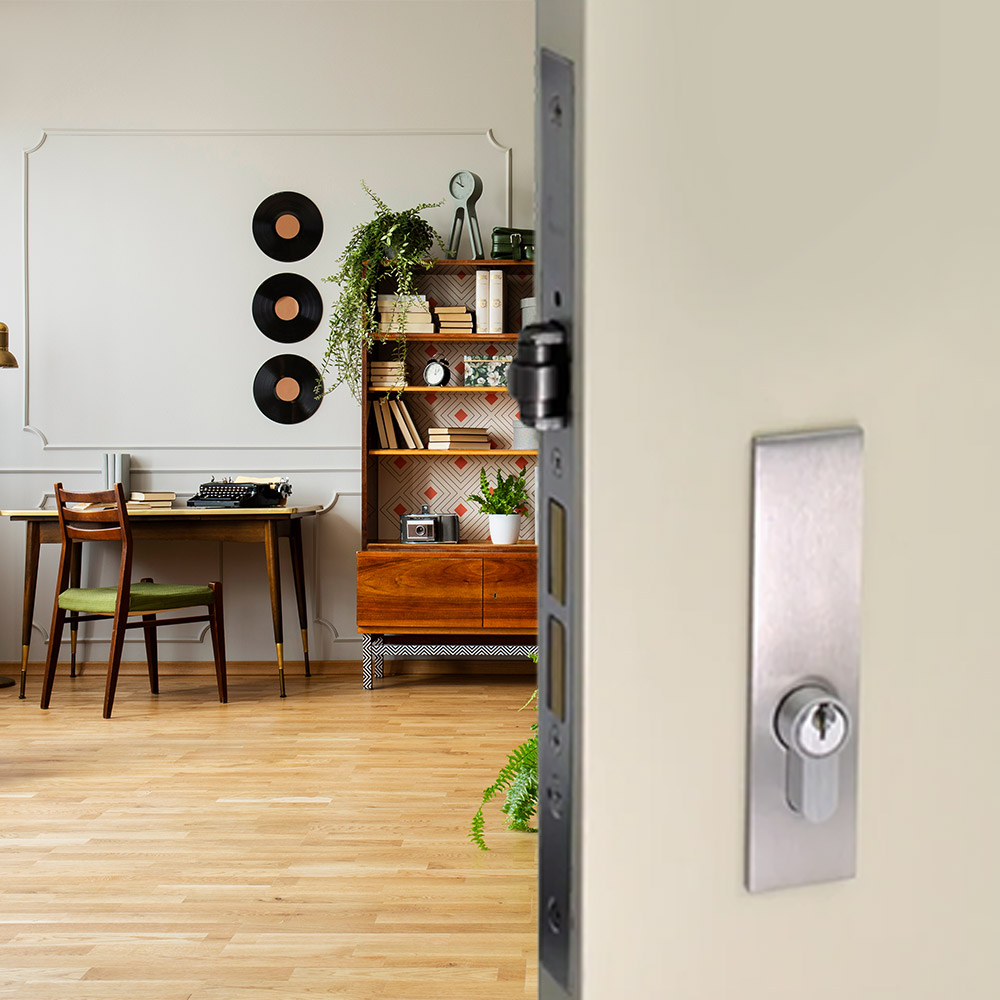

COMBO WITHOUT PULL HANDLE
Rectangular Snib Set
+ Stainless Steel
+ Polished Stainless Steel
+ Matte Black
+ Satin Brass
Radius Snib Set
+ Stainless Steel
+ Polished Stainless Steel
+ Matte Black
OZI-3 LOCK ACCESSORIES FOR HINGED AND PIVOT DOORS
Enhance the function and finish of your OZI-3 roller mortice lock with a full range of compatible accessories, specially designed for hinged and pivot door installations. From precision striker plates to optional lock cylinders, these components ensure secure engagement, long-term durability, and a professional fit.

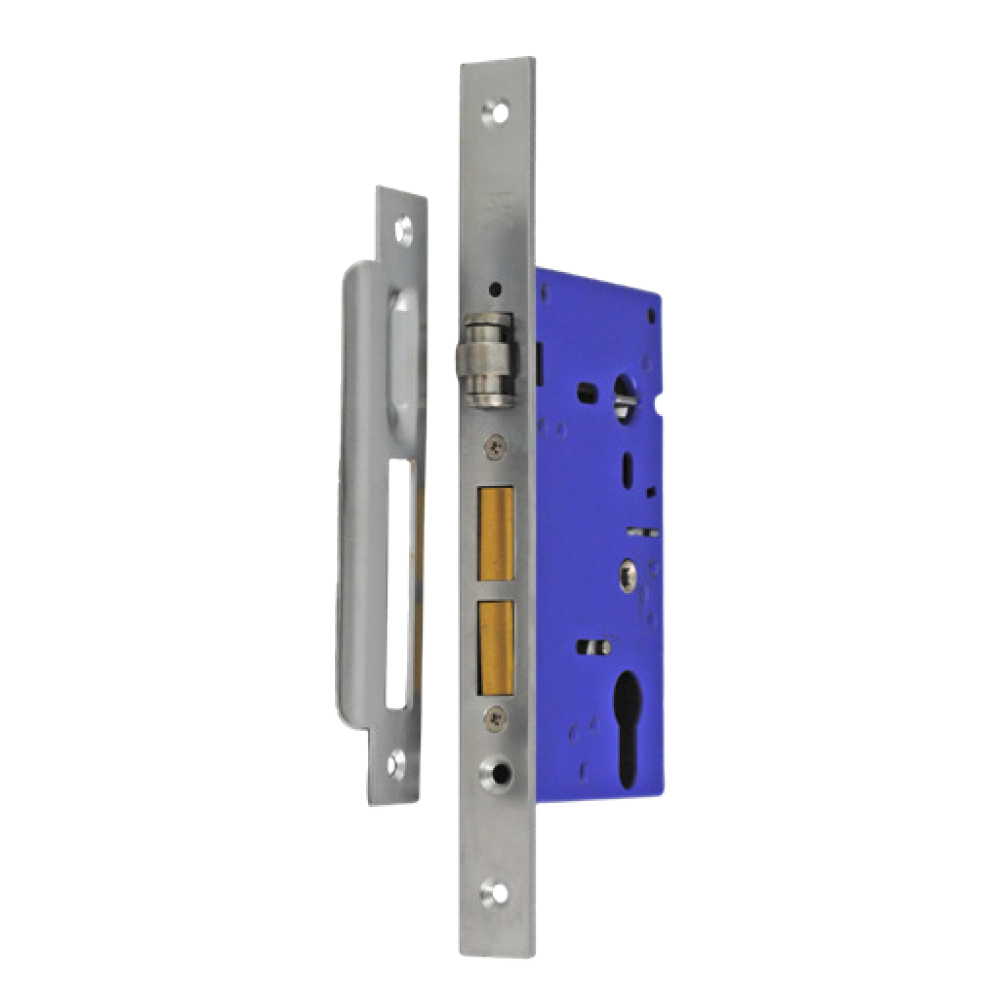

3 FUNCTIONS IN 1 MORTICE LOCK
+ Australian Made Mortice Lock
+ 3 functions in 1
+ Double Cylinder Deadbolt
+ Nightbolt (inside Turn Snib locking)
+ Passage function
+ 46mm and 60mm backset model
+ Suits door width to 40mm. Above 40mm needs M3 posts.
+ 60mm backset body: 80.0W x 145.0H x 15.0D
+ 46mm backset body: 67.0W x 145.0H x 15.0D
+ Mortice face plate: 22.0W x 240.0H x 3.0D
+ Standard striker plate: 36.0W (incl lip) x 160.0H
+ Snib to euro cylinder centre to centre: 35mm
+ Bolt throw: 14mm
+ Snib cam: 5mm
+ Snib Spindle: 4.75 thickness
ROLLER STANDARD STRIKER KIT, ROLLER REBATE KIT
Left and Right Hand
Finish:
Satin Chrome, Chrome Plated, Matte Black, Polished Brass, Satin Brass, Florentine Bronze
SNIB TURN ESCUTCHEON SETS
Finish:
Stainless Steel, Polished Stainless Steel, Matte Black, Satin Brass
OZI-3 MORTICE LOCK STRIKER PLATE OPTIONS
Standard Striker Plate
This standard striker plate is supplied when you order a standard OZI-3 striker kit.
Extended Striker Plate
85mm overall width. Generally suitable for standard pivot doors.

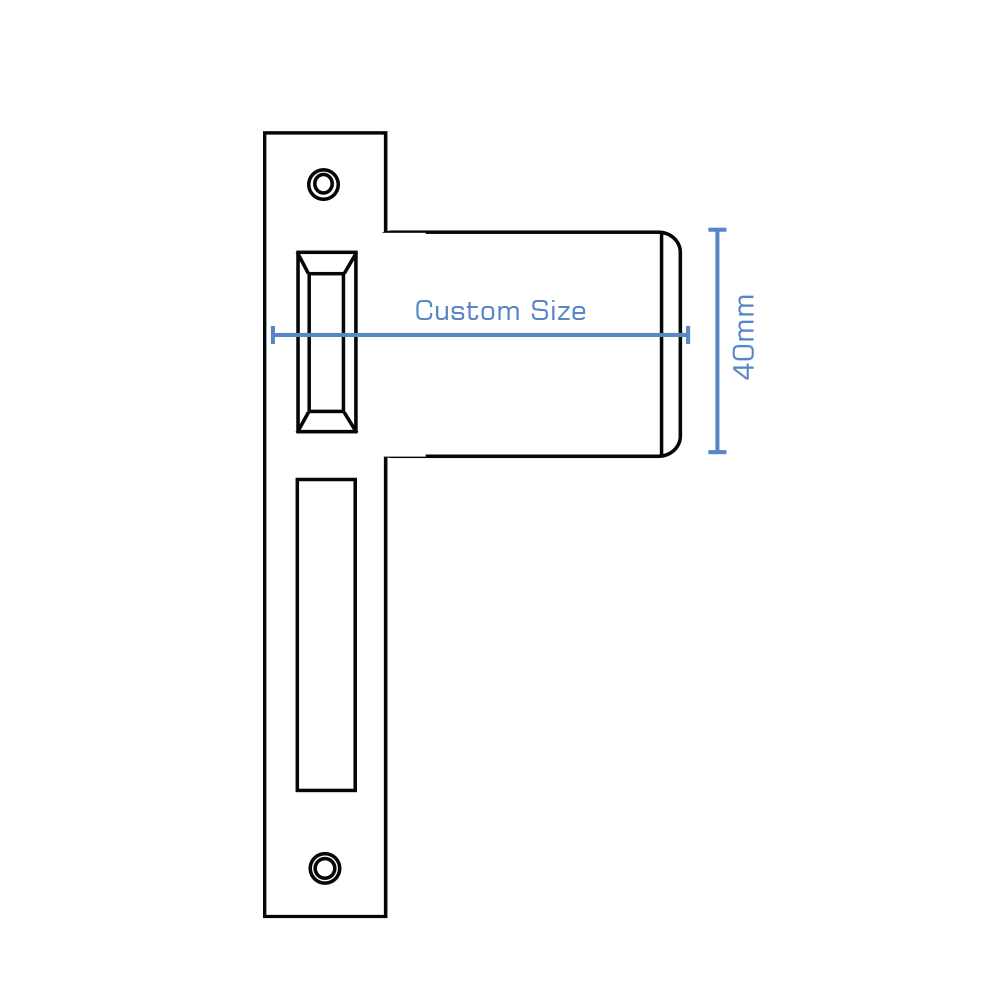

Customised Striker Plate
Manufactured to your specified width. Allow up to 8 weeks lead time and additional cost.
